Concrete Equipment

Filtration Unit


View Pricing & Order

The CSS115 Filtration Unit is designed for the safe and convenient handling of concrete washwater by dealing with the harmful waste on site. The purpose constructed filtration bag is manufactured from a 300gsm, 900mm cube non-woven geotextile fabric inner layer with a bulk bag protective external. Sand, gravel and suspended concrete particles as fine as 80 microns are separated from the concrete slurry generated from the washout of concrete trucks and other equipment onsite and from saw cutting, core drilling, grinding and grooving concrete. Excess water passes through the filter bag and is captured in the holding tank below for testing and treatment.  This unit can also be used as a dewatering station for filtering sediment laden water on sites that need to control the amount of sediment or pollution runoff.

Specifications:

  • Allows best practice and EPA compliance for handling concrete slurry onsite
  • Suits concrete slurry from truck & equip washout, concrete cutting, coring & grinding
  • Can be used for pumping and filtering sediment from silt laden water
  • Filters and separates washout particles to 80 microns from slurry water
  • Filter bag is suspended from frame for easy removal when full by crane or forklift
  • Washout up to 80 trucks before replacing the supplied filter bag (CSS115FB)
  • Wastewater in tank can be tested and treated without the need for off-site processing
  • 50mm valve fitted standard
  • Fork guides and crane lugs fitted for easy relocation around the site
  • Enamel paint finish
  • Working Load Limit: 1500kg
  • Sump Capacity: 0.3 cu.m
  • Bag Capacity: 0.6 cu.m
  • Overall Dimensions: 1200x1200x1420mm
  • Unit Weight: 140kg
Download PDF Download PDF Brochure Ask a QuestionAsk a Question

Product Description

The CSS115 Filtration Unit is designed for the safe and convenient handling of concrete washwater by dealing with the harmful waste on site. The purpose constructed filtration bag is manufactured from a 300gsm, 900mm cube non-woven geotextile fabric inner layer with a bulk bag protective external. Sand, gravel and suspended concrete particles as fine as 80 microns are separated from the concrete slurry generated from the washout of concrete trucks and other equipment onsite and from saw cutting, core drilling, grinding and grooving concrete. Excess water passes through the filter bag and is captured in the holding tank below for testing and treatment.  This unit can also be used as a dewatering station for filtering sediment laden water on sites that need to control the amount of sediment or pollution runoff.

Specifications:

  • Allows best practice and EPA compliance for handling concrete slurry onsite
  • Suits concrete slurry from truck & equip washout, concrete cutting, coring & grinding
  • Can be used for pumping and filtering sediment from silt laden water
  • Filters and separates washout particles to 80 microns from slurry water
  • Filter bag is suspended from frame for easy removal when full by crane or forklift
  • Washout up to 80 trucks before replacing the supplied filter bag (CSS115FB)
  • Wastewater in tank can be tested and treated without the need for off-site processing
  • 50mm valve fitted standard
  • Fork guides and crane lugs fitted for easy relocation around the site
  • Enamel paint finish
  • Working Load Limit: 1500kg
  • Sump Capacity: 0.3 cu.m
  • Bag Capacity: 0.6 cu.m
  • Overall Dimensions: 1200x1200x1420mm
  • Unit Weight: 140kg
View More Specifications

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image Description Code Price Each Order Quantity
Availability

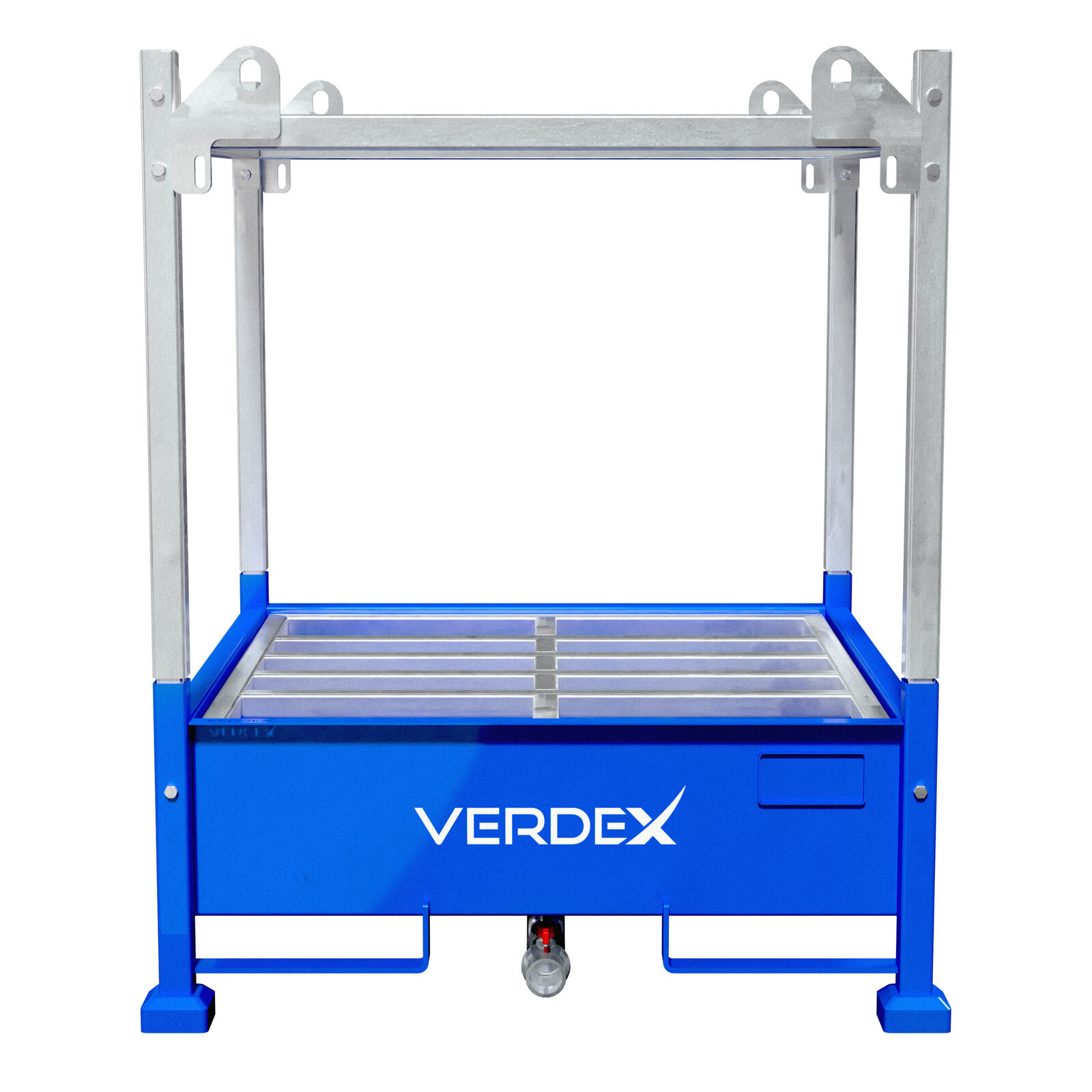

CSS115 Filtration Unit

CSS115 Filtration Unit

Product Code: CSS115

-

 CSS115 Filtration Unit CSS115
View Details

$1,660.00

-
+
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM

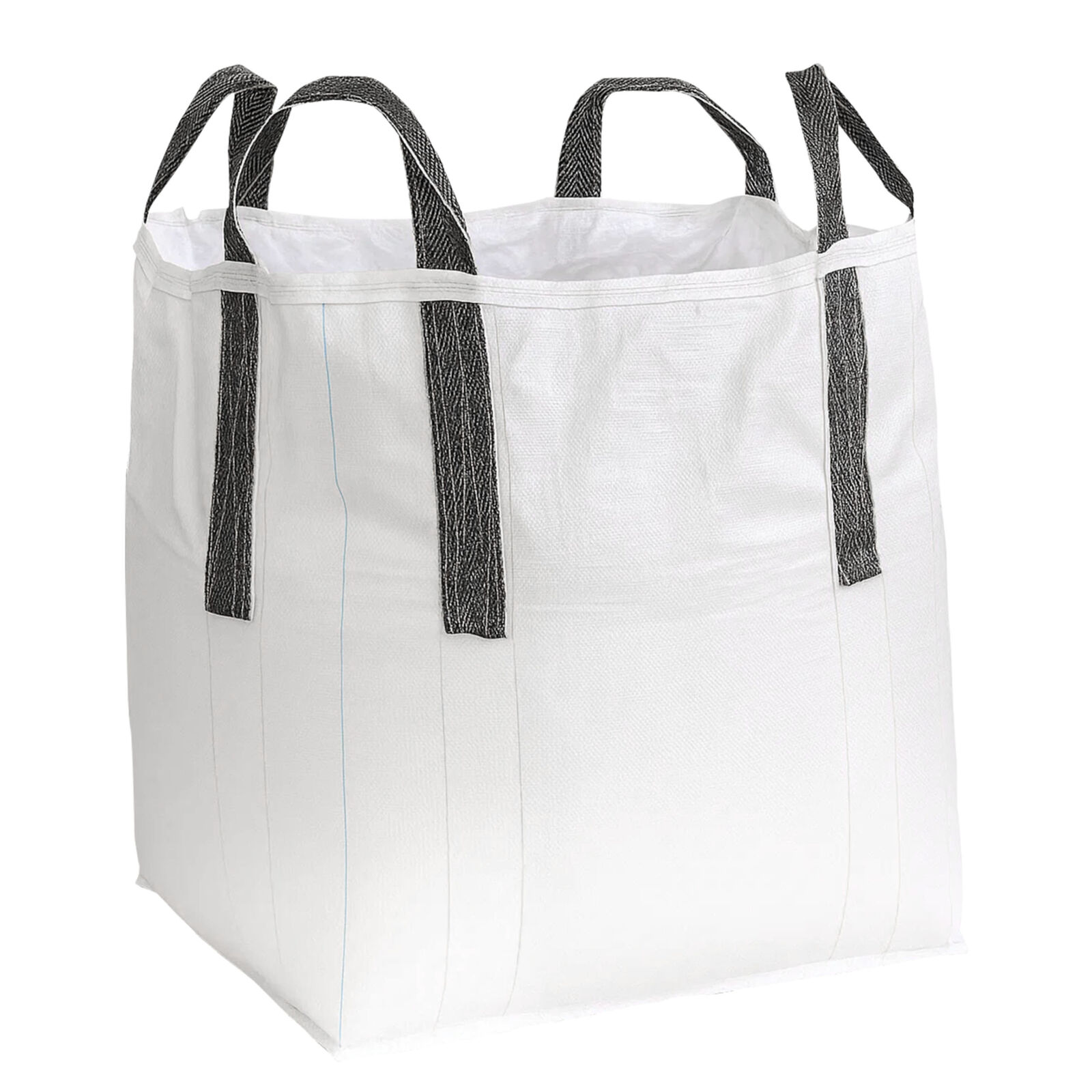

Filtration Bag

Filtration Bag

Product Code: CSS115FB

-

 Filtration Bag CSS115FB
View Details

$120.00

-
+
In StockIn Stock
In StockIn Stock

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST
Product Dimensions / Specifications

The CSS115 Filtration Unit is designed for the safe and convenient handling of concrete washwater by dealing with the harmful waste on site. The purpose constructed filtration bag is manufactured from a 300gsm, 900mm cube non-woven geotextile fabric inner layer with a bulk bag protective external. Sand, gravel and suspended concrete particles as fine as 80 microns are separated from the concrete slurry generated from the washout of concrete trucks and other equipment onsite and from saw cutting, core drilling, grinding and grooving concrete. Excess water passes through the filter bag and is captured in the holding tank below for testing and treatment.  This unit can also be used as a dewatering station for filtering sediment laden water on sites that need to control the amount of sediment or pollution runoff.

Specifications:

  • Allows best practice and EPA compliance for handling concrete slurry onsite
  • Suits concrete slurry from truck & equip washout, concrete cutting, coring & grinding
  • Can be used for pumping and filtering sediment from silt laden water
  • Filters and separates washout particles to 80 microns from slurry water
  • Filter bag is suspended from frame for easy removal when full by crane or forklift
  • Washout up to 80 trucks before replacing the supplied filter bag (CSS115FB)
  • Wastewater in tank can be tested and treated without the need for off-site processing
  • 50mm valve fitted standard
  • Fork guides and crane lugs fitted for easy relocation around the site
  • Enamel paint finish
  • Working Load Limit: 1500kg
  • Sump Capacity: 0.3 cu.m
  • Bag Capacity: 0.6 cu.m
  • Overall Dimensions: 1200x1200x1420mm
  • Unit Weight: 140kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Beach Towel Bag

Code: GA1167

Beach Towel Bag

FREE GIVEAWAY

View Details
Roll up Beach Chair

Code: GA1169

Roll up Beach Chair

FREE GIVEAWAY

View Details
Picnic Basket

Code: GA1168

Picnic Basket

FREE GIVEAWAY

View Details
Foldable Beach Cabana

Code: GA1166

Foldable Beach Cabana

FREE GIVEAWAY

View Details
Modular Workbench Accessories - 2400 Series

Modular Workbench Accessories - 2400 Series

From $10.00

View Details
Rugby Ball

Code: GA2207

Rugby Ball

FREE GIVEAWAY

View Details
AFL Ball

Code: GA2208

AFL Ball

FREE GIVEAWAY

View Details
Galvanized Tiered Trolley (Clearance Item)

Galvanized Tiered Trolley (Clearance Item)

Code: CLR0151

Galvanized Tiered Trolley (Clearance Item)

$705.00

View Details
Clearance Item

The CSS115 Filtration Unit, is a specialized solution designed for the safe and efficient handling of concrete washwater, ensuring compliance with best practices and EPA regulations on site.

Key Features:

Effective Filtration: The unit utilizes a purpose-constructed filtration bag made from high-quality non-woven geotextile fabric, capable of separating sand, gravel, and suspended concrete particles as fine as 80 microns from the concrete slurry generated on site.
Versatile Application: Suitable for various concrete-related activities, including truck and equipment washout, concrete cutting, coring, grinding, and more. Additionally, it can function as a dewatering station for filtering sediment-laden water, offering versatility in handling different types of wastewater.
Efficient Water Management: The filtration process allows excess water to pass through the filter bag, capturing pollutants and contaminants, while the holding tank below collects the filtered water for testing and treatment, eliminating the need for off-site processing.
Convenient Operation: Equipped with fork guides and crane lugs for easy relocation around the site, facilitating hassle-free handling and setup. The filter bag is suspended from the frame, allowing for effortless removal when full, either by crane or forklift.
Long-lasting Performance: Designed to withstand rugged on-site conditions, the unit features a durable enamel paint finish and robust construction, ensuring reliable operation and extended service life.
Generous Capacity: With a bag capacity of 0.6 cubic meters and a sump capacity of 0.3 cubic meters, the unit can effectively handle concrete slurry from multiple sources, providing efficient filtration for up to 80 trucks before requiring filter bag replacement.


The CSS115 Filtration Unit offers an environmentally friendly solution for managing concrete washwater and sediment-laden runoff, making it an essential tool for construction sites and industrial applications where water quality and pollution control are paramount. MHA supply a vast range of Concrete Equipment, view the full range here.
