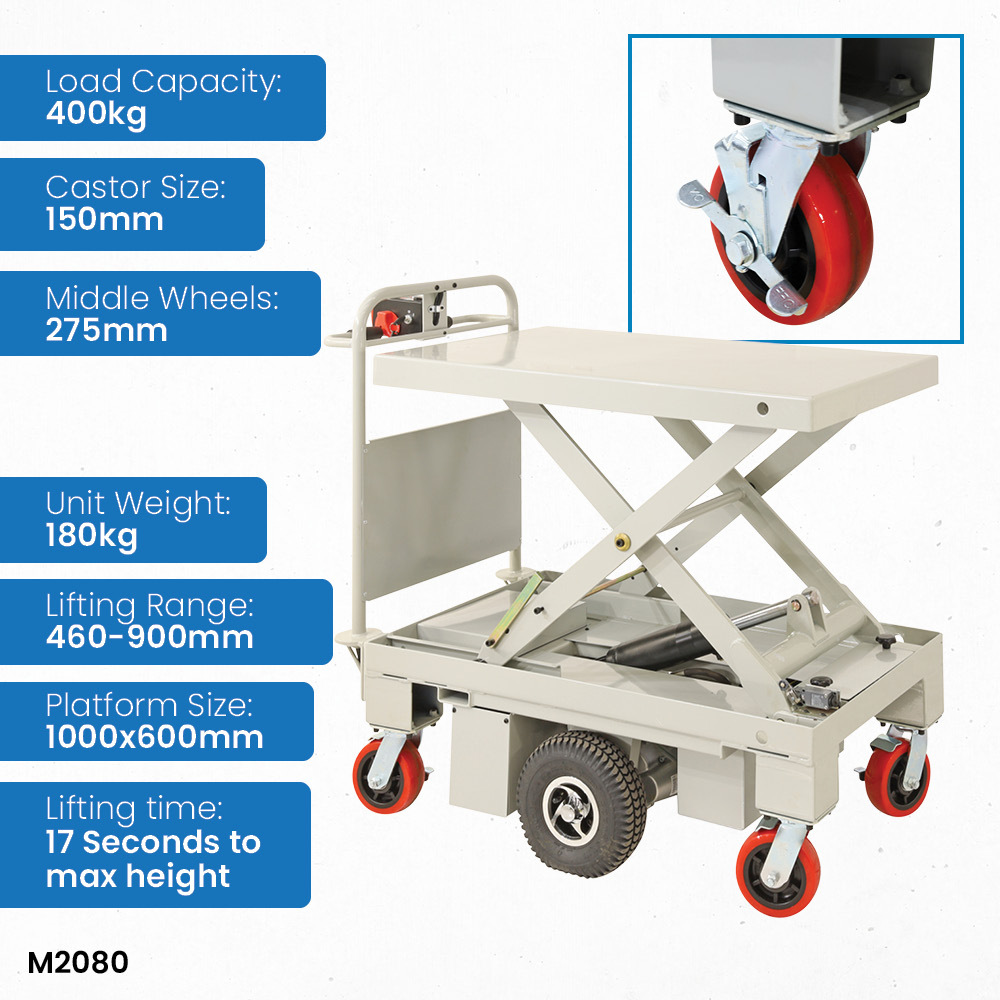

Self Propelled Electric Scissor Lift Trolley

The Self-Propelled Electric Scissor Lift Trolley with a cage offers efficient and effortless handling of heavy loads, combining electric lift capabilities with self-propulsion for ease of use. Here are its features:

Self-Propelled Operation: This trolley features self-propulsion, eliminating the need for manual pushing or pulling of heavy items. The electrically powered drive system enables smooth and controlled movement of the trolley, reducing operator fatigue and improving productivity.

Electric Lift: With electrically operated lift functionality, this trolley allows for effortless lifting and lowering of loads. The electric lift mechanism ensures precise positioning and efficient handling of materials, enhancing operational efficiency.

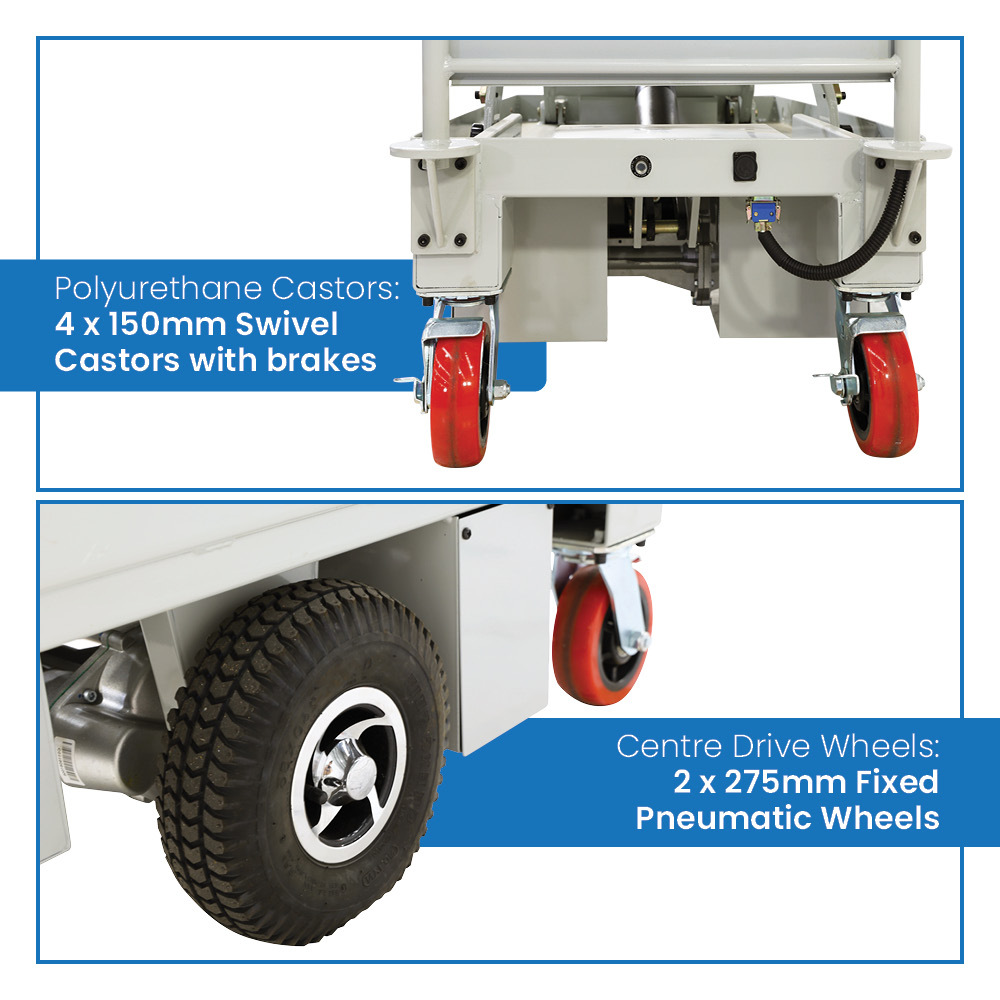

Centre Drive Wheel: Equipped with a centre drive wheel, the trolley offers exceptional maneuverability, especially in narrow aisles or tight spaces. The drive wheel enables easy navigation and precise control, even in confined work areas.

Removable Side Cage: The trolley comes complete with a side cage, providing added safety and security for the transported goods. The cage can be easily removed if not required, offering versatility in handling different types of loads.

Charging Unit: Supplied with a charging unit, the trolley ensures convenient and reliable power supply for prolonged operation. The charging unit allows for quick and easy recharging of the batteries, ensuring minimal downtime.

Swivel Castors with Brakes: The trolley features four swivel castors with brakes, providing stability and secure positioning during operation. The swivel castors enable smooth movement in all directions, while the brakes ensure stability when stationary.

Battery System: Powered by two 12V 33Ah batteries, the trolley delivers sufficient energy for extended use. The battery system provides reliable power for both the driving and lifting motors, ensuring consistent performance.

Controller: Equipped with a 70A controller, the trolley offers precise control over the electric lift and propulsion systems, allowing for smooth and efficient operation.

Lifting Capacity and Range: The trolley has a lifting capacity of 180kg and offers a lifting range from 460mm to 900mm, accommodating a wide range of load sizes and heights.

Table Size: The table size measures 1000x600mm, providing ample space for placing and maneuvering various items during transport.

Cage Height: The cage height is 600mm, offering sufficient protection and containment for the transported goods, ensuring safe handling and transport.

Overall Size: The overall dimensions of the trolley are 1240x600x1100mm, providing a compact footprint for easy maneuverability in confined spaces.

Unit Weight: Weighing 180kg, the trolley strikes a balance between durability and maneuverability, ensuring stability during operation while remaining manageable for transportation and storage.

Overall, the Self-Propelled Electric Scissor Lift Trolley with a cage is a versatile and efficient solution for handling heavy loads in various industrial and commercial settings, offering ease of operation, safety, and reliability. View all of our Scissor Lift Trolley options here.
