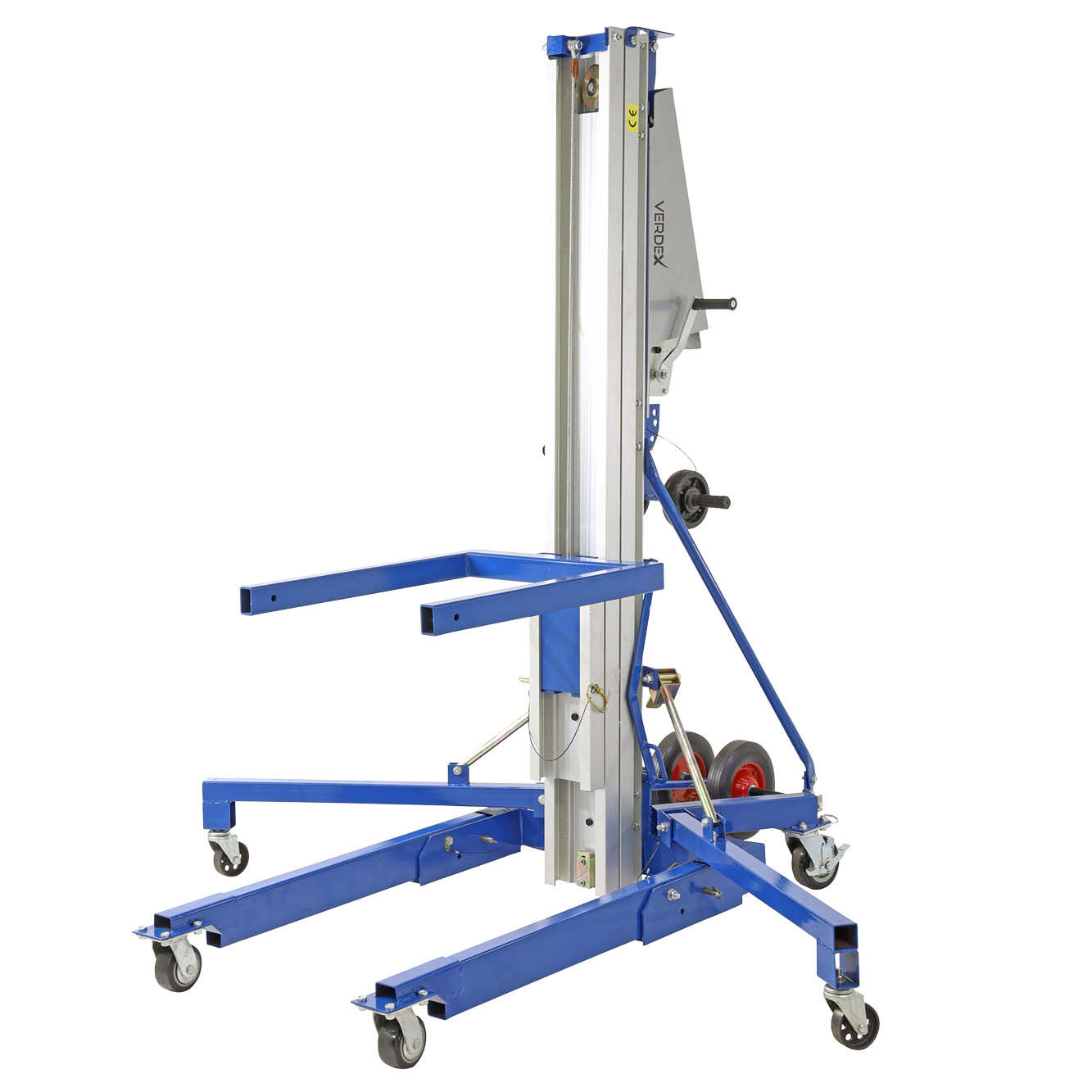

Aluminium Lifter (5000mm lift height)
In Stock
- These aluminium lifters are great for assisting in the lifting, positioning and installation of goods at height.
- Ideal for lifting items into ceiling spaces or handling machine parts at height.
- Folds for easy storage and transport.
- Manual hand winch control with automatic braking action
- Fits through standard doorways.
- Quick set up - requires no tools.
- Legs fold up for easy storage.
- Arm Length: 800mm
- Ground Clearance: 50mm
- Operating Length: 1880mm
- Front Castors: 100mm
- Rear Castors: 125mm
- Load Capacity at a 400mm load centre: 350kg
- Load Capacity at a 1000mm load centre: 150kg
- Minimum Height: 150mm
- Max Height: 5000mm
- Folded Size (LxWxH): 870x730x2000mm
- Unit Weight: 145kg
Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.
Please Note - We are not able to deliver goods to a PO Box address.
Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.
Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.
Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.
Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.
Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.
Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.
International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.
Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.
Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.
Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.
Click here to download a PDF Brochure Click here to fill in the form to request your required document
The Aluminium Lifter with a lift height of 5000mm offers versatility and convenience for various lifting and positioning tasks. Here are its features and specifications:
Features:
Assisted Lifting: Designed to assist in lifting, positioning, and installing goods at height, making it ideal for tasks such as lifting items into ceiling spaces or handling machine parts.
Folding Design: Folds for easy storage and transport, enhancing convenience when not in use.
Manual Hand Winch Control: Equipped with a manual hand winch control featuring automatic braking action for precise and controlled lifting operations.
Compact Design: Fits through standard doorways, allowing for easy maneuverability and access to different work areas.
Quick Setup: Requires no tools for setup, enabling quick and hassle-free preparation for use.
Foldable Legs: Legs fold up for easy storage, optimizing space efficiency when not in use.
Arm Length: Features an arm length of 800mm, providing sufficient reach for lifting and positioning tasks.
Ground Clearance: Offers a ground clearance of 50mm, allowing for smooth movement over various surfaces.
Operating Length: Measures 1880mm in length during operation, providing adequate reach and accessibility.
- Castors: Equipped with 100mm front castors and 125mm rear castors for stable and maneuverable operation.
- Load Capacity: Capable of lifting loads up to 350kg at a 400mm load center and 150kg at a 1000mm load center, ensuring versatility for different load types and configurations.
- Height Range: Offers a minimum height of 150mm and a maximum height of 5000mm, providing flexibility for lifting tasks at various heights.
- Folded Size: The folded size measures 870x730x2000mm, allowing for compact storage when not in use.
- Unit Weight: Weighs 145kg, ensuring stability and durability during operation.
This Aluminium Lifter is a reliable and efficient solution for lifting and positioning tasks at height, offering ease of use, portability, and versatility for various applications. For all of MHA's Manual Pallet Stackers, click here to find the best one suited to your application.
