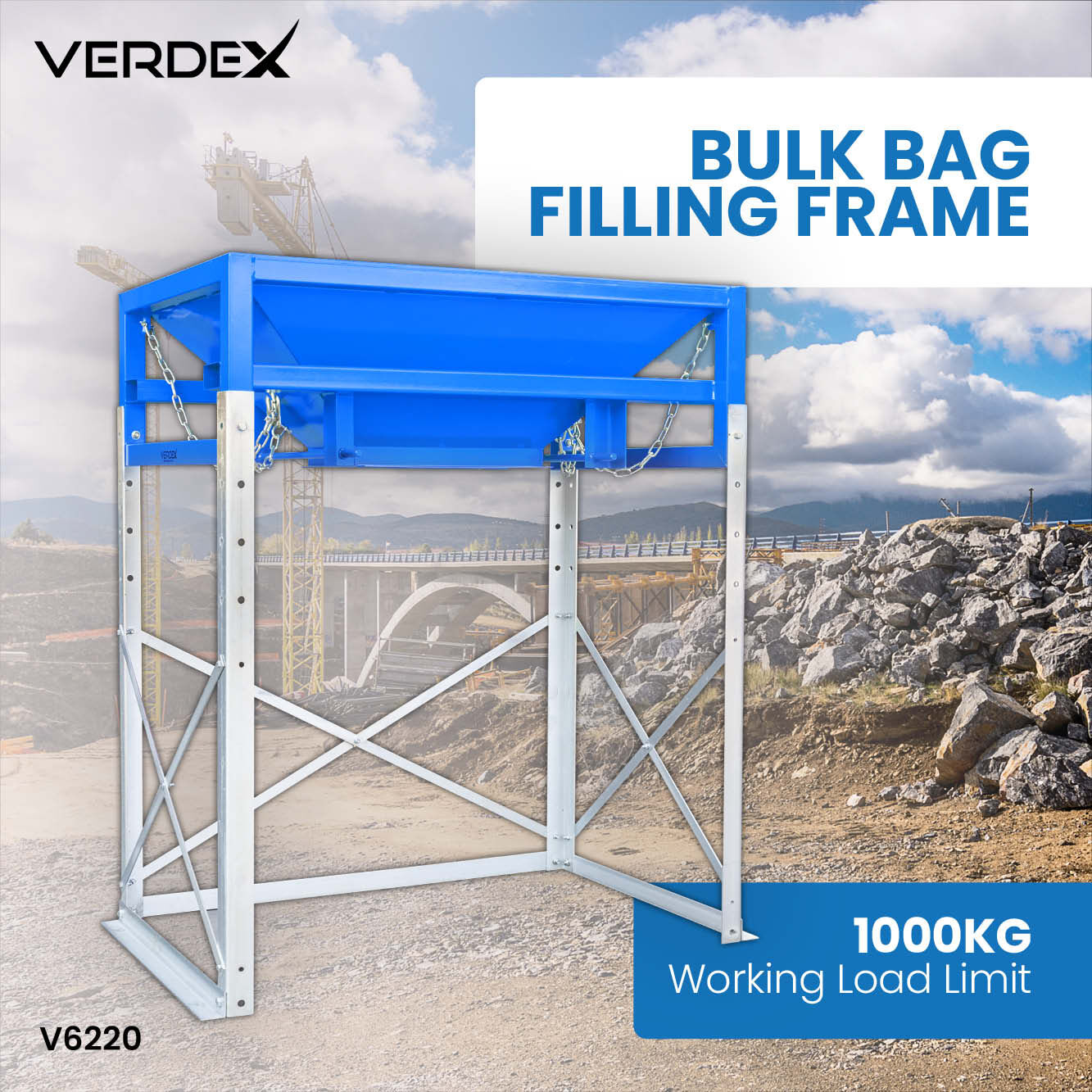

Bulk Bag Filling Frame

The M6220 Bulk Bag Filling Frame offers a safe and efficient solution for filling bulk bags with free-flowing bulk products such as sand and gravel. Designed to streamline operations and minimize manual labor, this frame enhances productivity while reducing the risk of injury. Here are its key features and specifications:

Safety Swivel Hooks: Equipped with four safety swivel hooks, the frame securely holds the bulk bag in position during the filling process. This ensures stability and prevents the bag from shifting or tipping over, enhancing operational safety.

Adjustable Bag Restraining Chains: The frame features adjustable bag restraining chains that allow for precise positioning of the bulk bag at the correct height. This ensures optimal filling and prevents spillage or overflow, improving efficiency and reducing waste.

Adjustable Height Settings: With three adjustable height settings, the frame offers flexibility to suit various operational requirements. Operators can easily adjust the height to accommodate different bag sizes or filling configurations, enhancing versatility and adaptability.

Fork Pockets: Fork pockets are integrated into the frame for easy transport and maneuverability. This allows forklifts to lift and move the frame with ease, facilitating convenient positioning at the desired location.

Optional Clamshell Gate: An optional clamshell gate (BFU250CS) is available for controlling the flow rate of bulk products during the filling process. This feature provides additional control and precision, allowing operators to regulate the flow according to specific requirements.

Optional Spill Guard: The optional spill guard (BFU250SG) helps prevent overspill and ensures clean and efficient filling operations. By containing the bulk products within the bag, the spill guard minimizes waste and maintains a tidy work environment.

Durable Construction: The upper hopper assembly is finished with enamel paint for enhanced durability, while the support frame features a zinc finish for corrosion resistance. This robust construction ensures long-lasting performance in demanding industrial environments.

Working Load Limit (WLL): The frame has a working load limit of 1000kg, providing ample capacity for filling bulk bags with heavy materials. This allows for efficient handling of large quantities of bulk products, maximizing productivity.

Overall Dimensions: The frame measures 1800 x 1150mm, providing a spacious and ergonomic platform for filling bulk bags. The generous dimensions accommodate various bag sizes and configurations, allowing for versatile usage.

Fork Pocket Size and Centres: The fork pockets have dimensions of 140 x 65mm and are spaced at 850mm centers, ensuring compatibility with standard forklift tines and stable lifting during transport.

Unit Weight: The frame has a unit weight of 270kg (excluding optional accessories), balancing sturdiness with portability for ease of handling and transportation.

In summary, the M6220 Bulk Bag Filling Frame offers a comprehensive solution for efficient and safe bulk bag filling operations. With its robust construction, adjustable features, and optional accessories, it provides versatility, productivity, and reliability in industrial settings. View all of our Construction Equipment range here, to find the best solution for you.
