Scissor Lift Trolleys and Tables

Double Scissor Electric Lift Tables


View Pricing & Order

Lift tables can be applied in many work places to increase productivity and safety. Loads can be elevated or lowered to optimum heights at the push of a button.

Features
  • Heavy duty design and construction
  • High quality European power packs
  • Suitable for on floor applications or in floor pit applications
  • Self lubricating bushings on pivot points

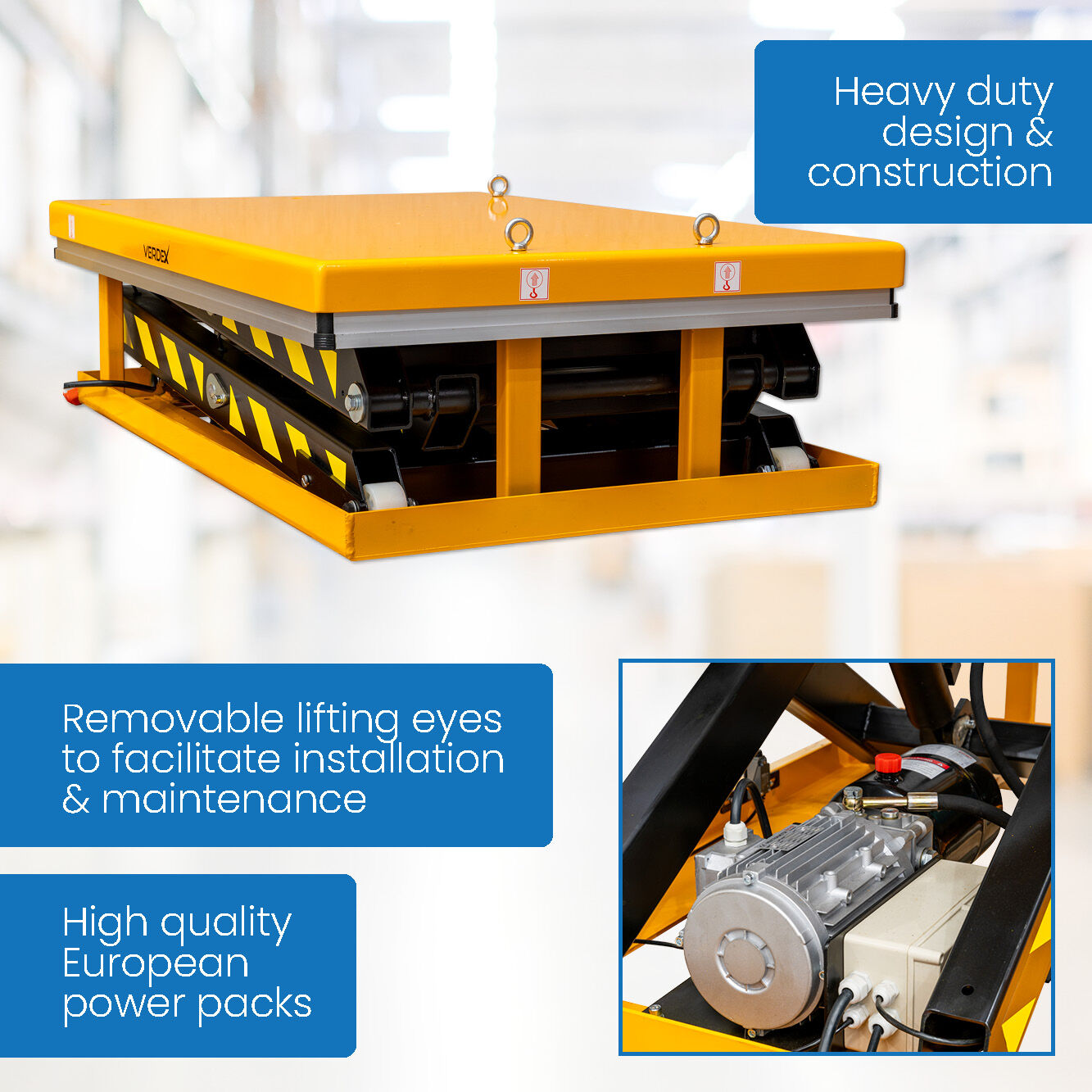

  • Removable lifting eyes to facilitate installation and maintenance
  • Standard Safety Features

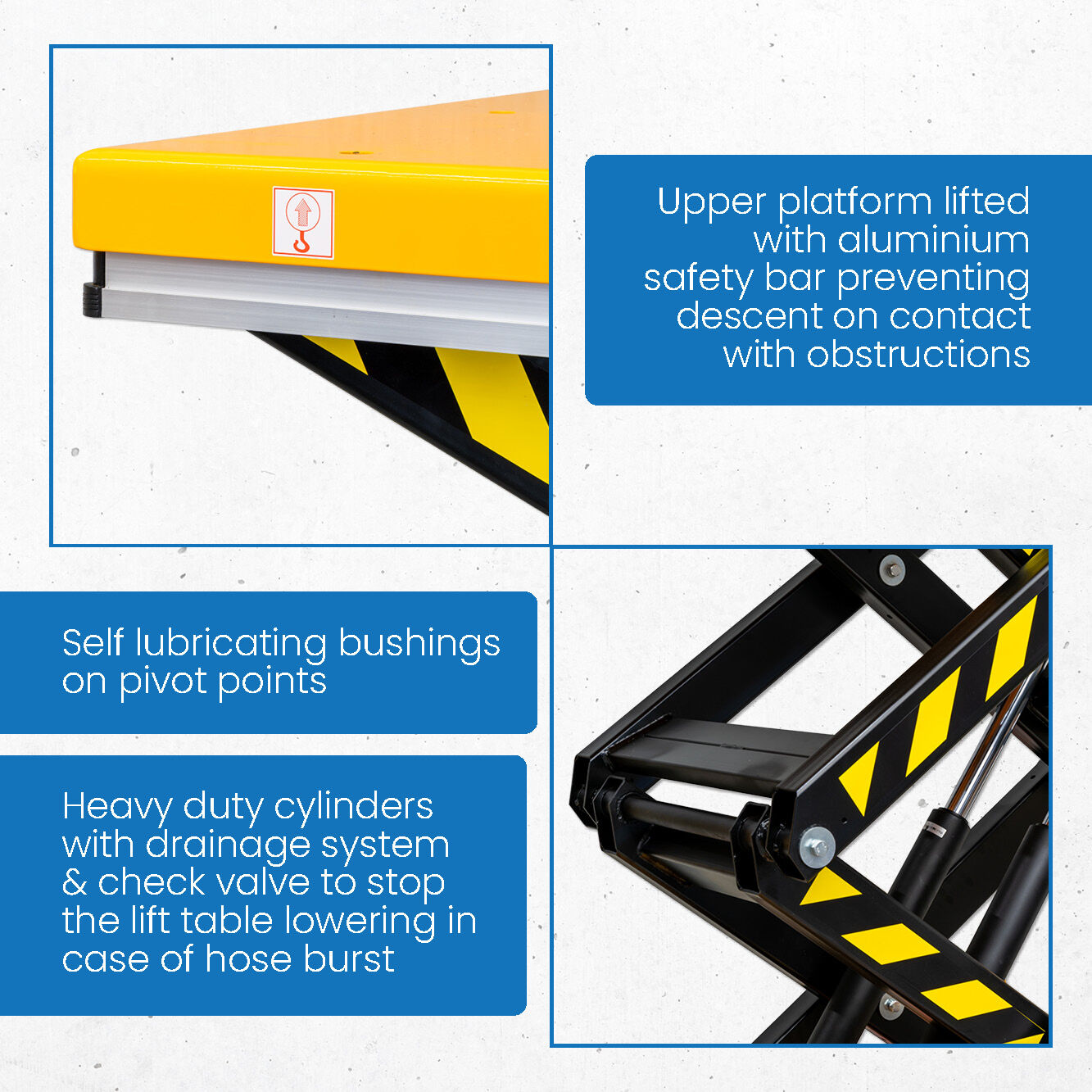

  • Upper platform lifted with aluminium safety bar preventing descent on contact with obstructions.
  • Low volt (24v) control box with up-down buttons.
  • Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
  • Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
  • Safety clearance between scissors to prevent trapping during operation.
  • Push button pendant control with up, down and emergency stop.
  • 240v or 3 phase options available
Download PDF Download PDF Brochure Ask a QuestionAsk a Question

Product Description

Lift tables can be applied in many work places to increase productivity and safety. Loads can be elevated or lowered to optimum heights at the push of a button.

Features
  • Heavy duty design and construction
  • High quality European power packs
  • Suitable for on floor applications or in floor pit applications
  • Self lubricating bushings on pivot points
  • Removable lifting eyes to facilitate installation and maintenance
  • Standard Safety Features
  • Upper platform lifted with aluminium safety bar preventing descent on contact with obstructions.
  • Low volt (24v) control box with up-down buttons.
  • Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
  • Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
  • Safety clearance between scissors to prevent trapping during operation.
  • Push button pendant control with up, down and emergency stop.
  • 240v or 3 phase options available
View More Specifications

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image Description Code Price Each Order Quantity
Availability

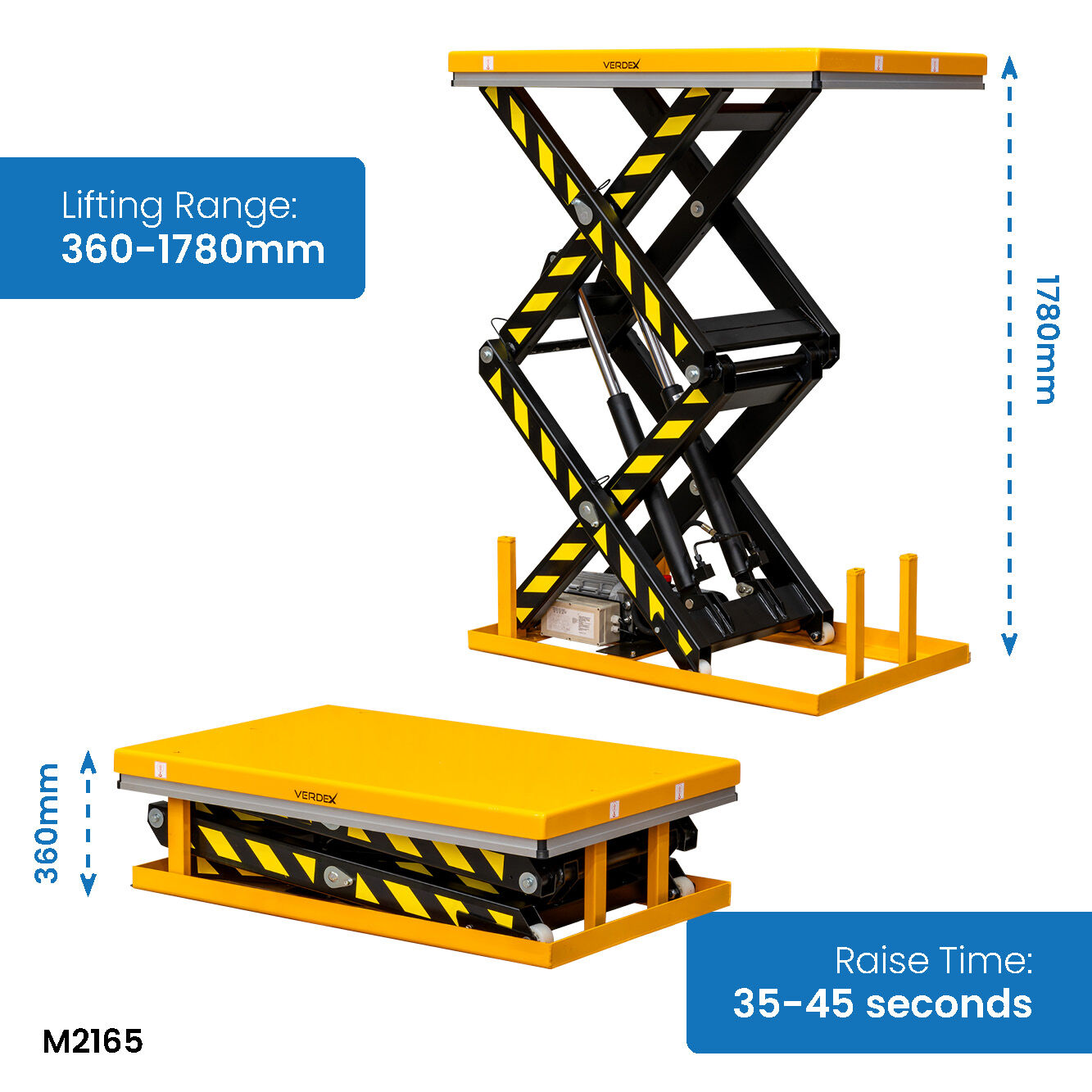

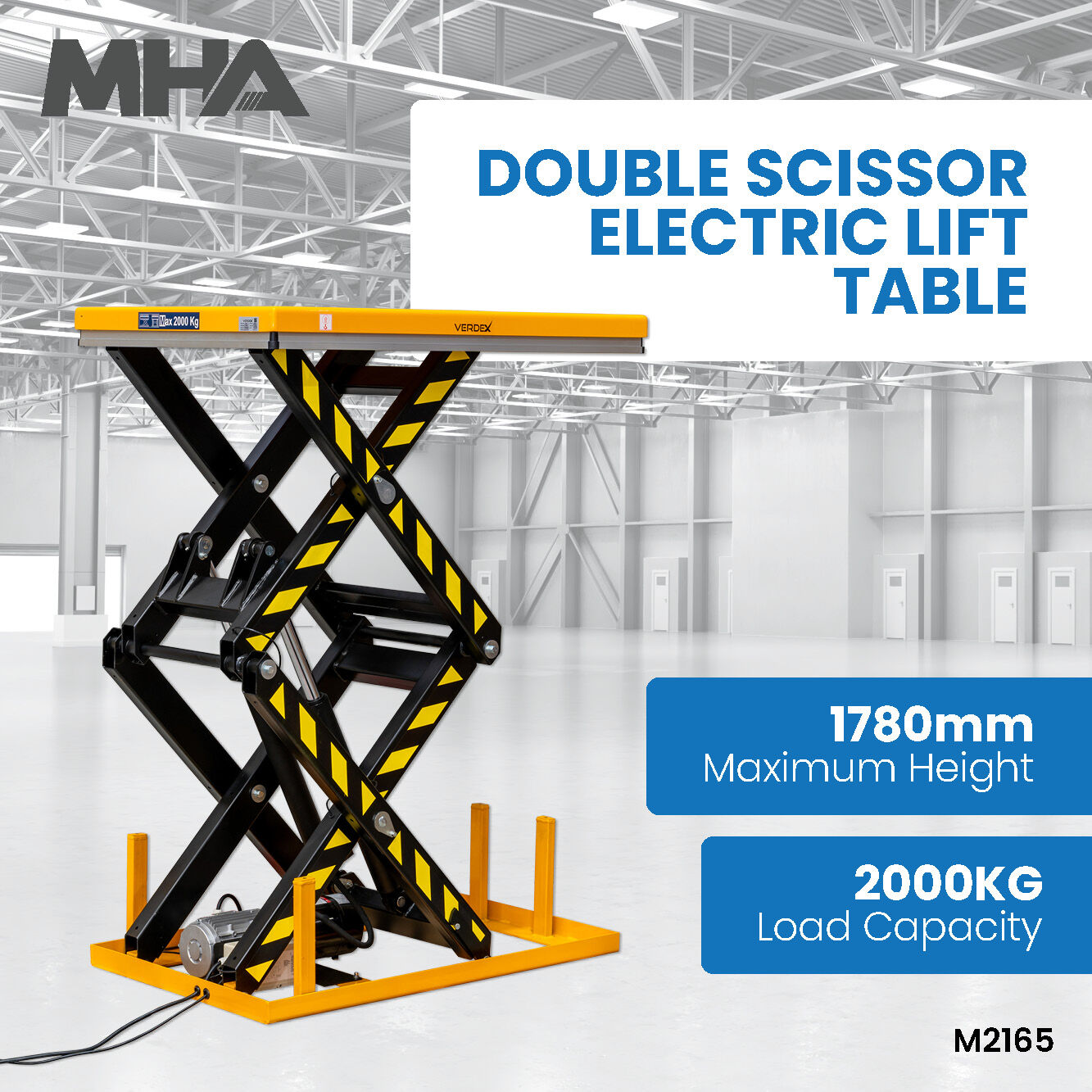

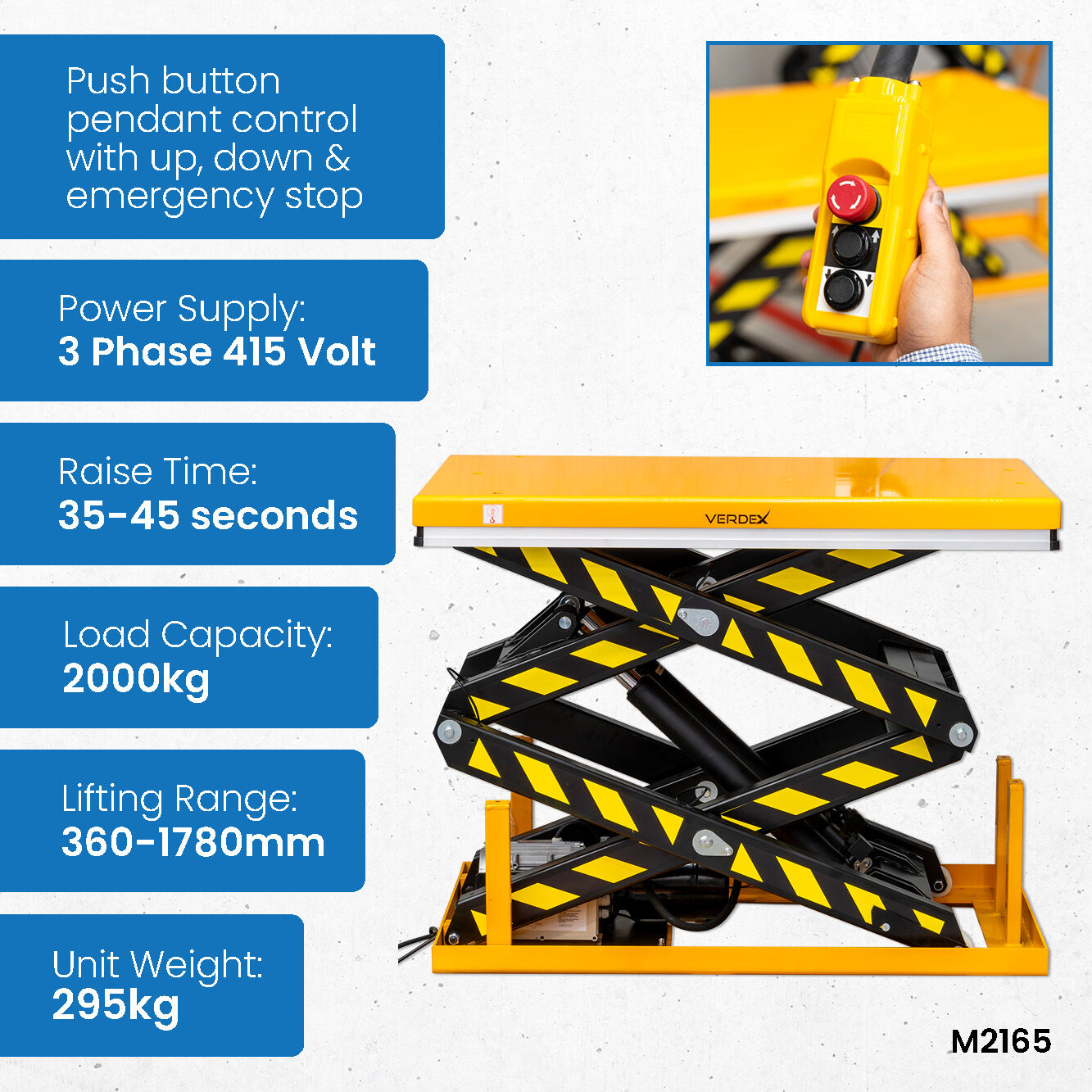

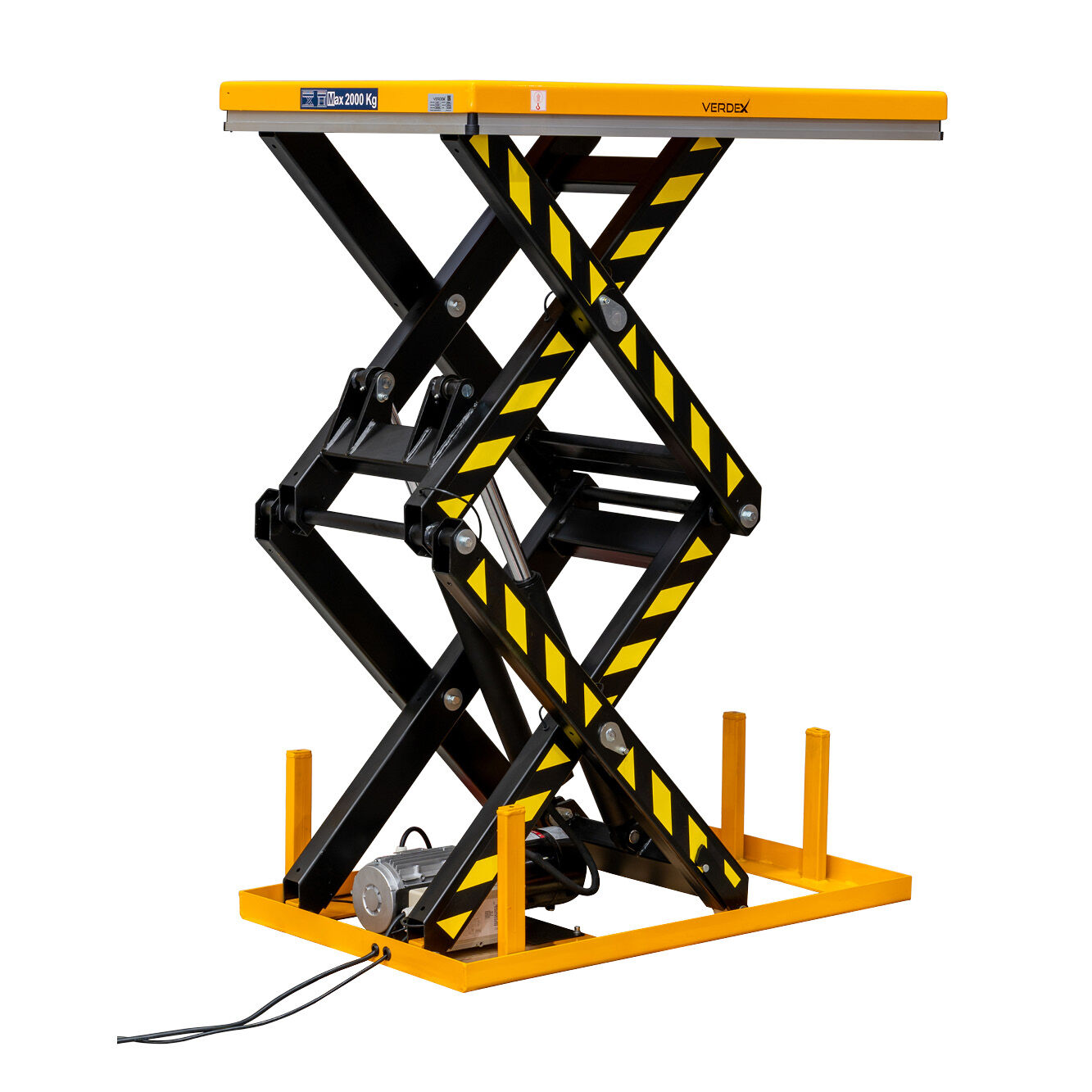

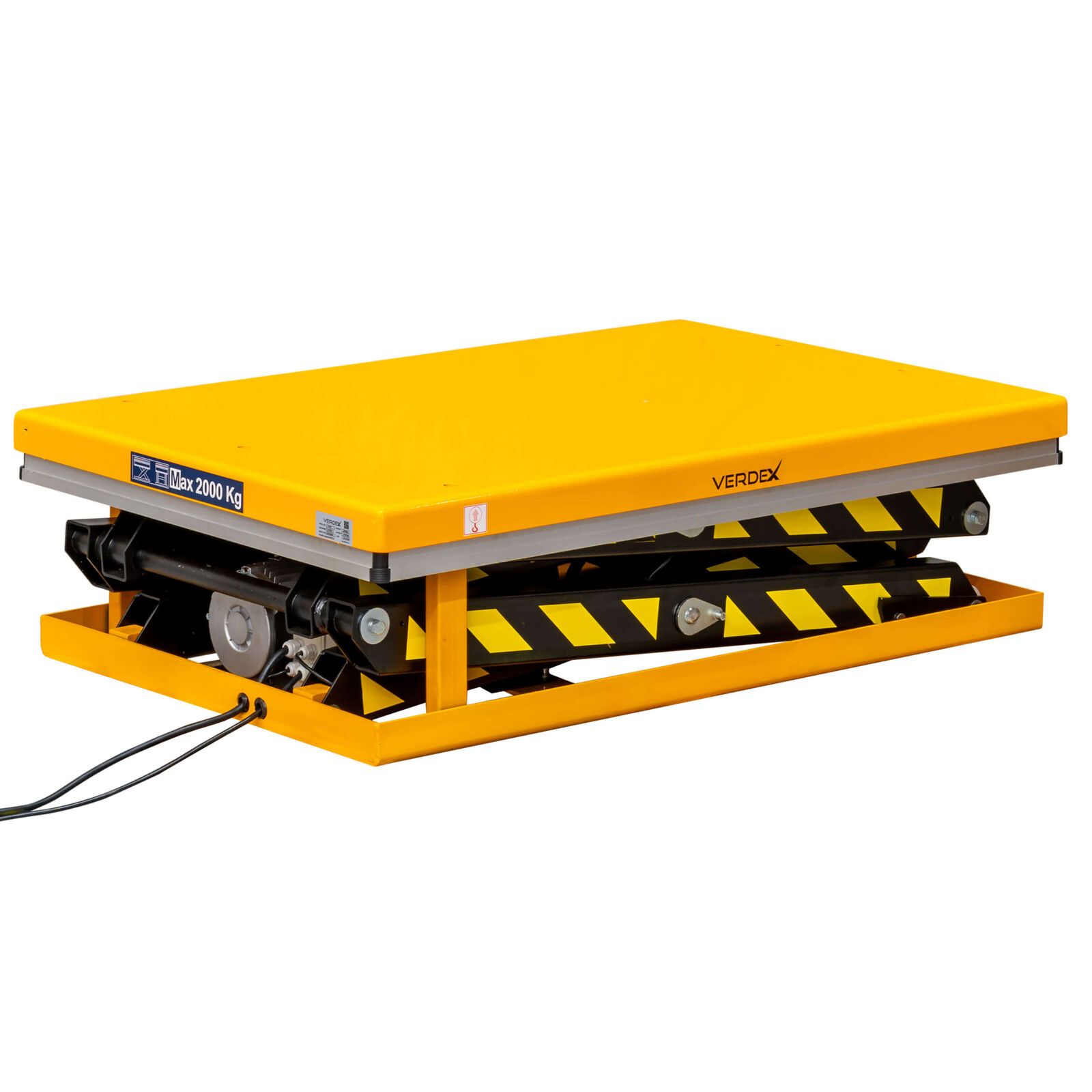

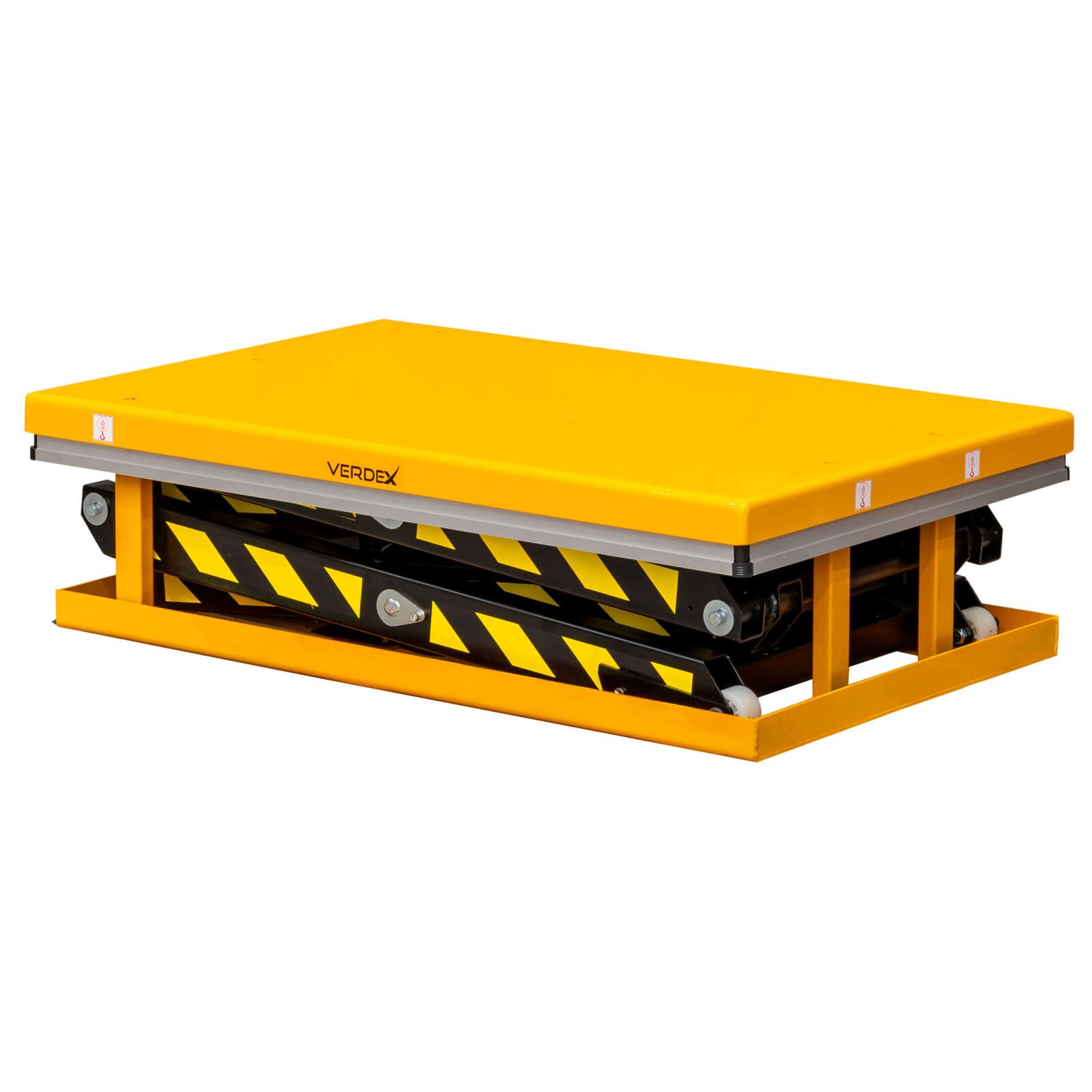

Double Scissor Electric Lift Table - 2000kg capacity

Double Scissor Electric Lift Table - 2000kg capacity

Product Code: M2165

  • Powder coated steel
  • Colour: Yellow & Black
  • Heavy duty design and construction
  • High quality European power packs
  • Self lubricating bushings on pivot points
  • Removable lifting eyes to facilitate installation and maintenance
  • Upper platform lifted with aluminium safety bar preventing descent on contact with obstructions.
  • Low volt (24v) control box with up-down buttons.
  • Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
  • Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
  • Safety clearance between scissors to prevent trapping during operation.
  • Push button pendant control with up, down and emergency stop.
  • Capacity: 2000kg
  • Table Size: 850x1300mm
  • Base Frame Size: 785x1220mm
  • Raise Time: 35-45 secs
  • Minimum Height: 360mm
  • Maximum Height: 1780mm
  • Power Supply: 3 Phase 415 Volt
  • Unit Weight: 295kg
 Double Scissor Electric Lift Table - 2000kg capacity M2165
View Details

$5,625.00

-
+
In StockIn Stock
In StockIn Stock

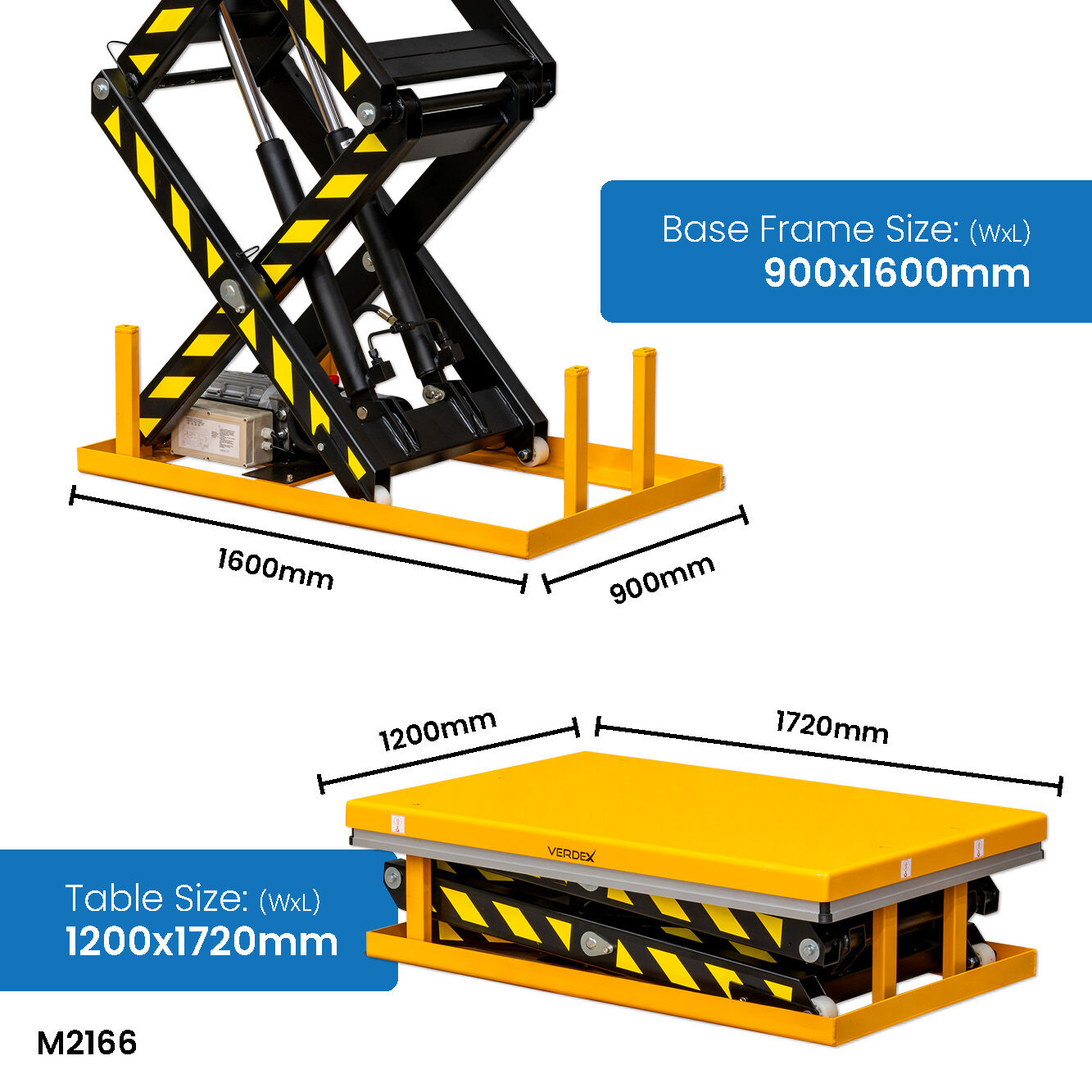

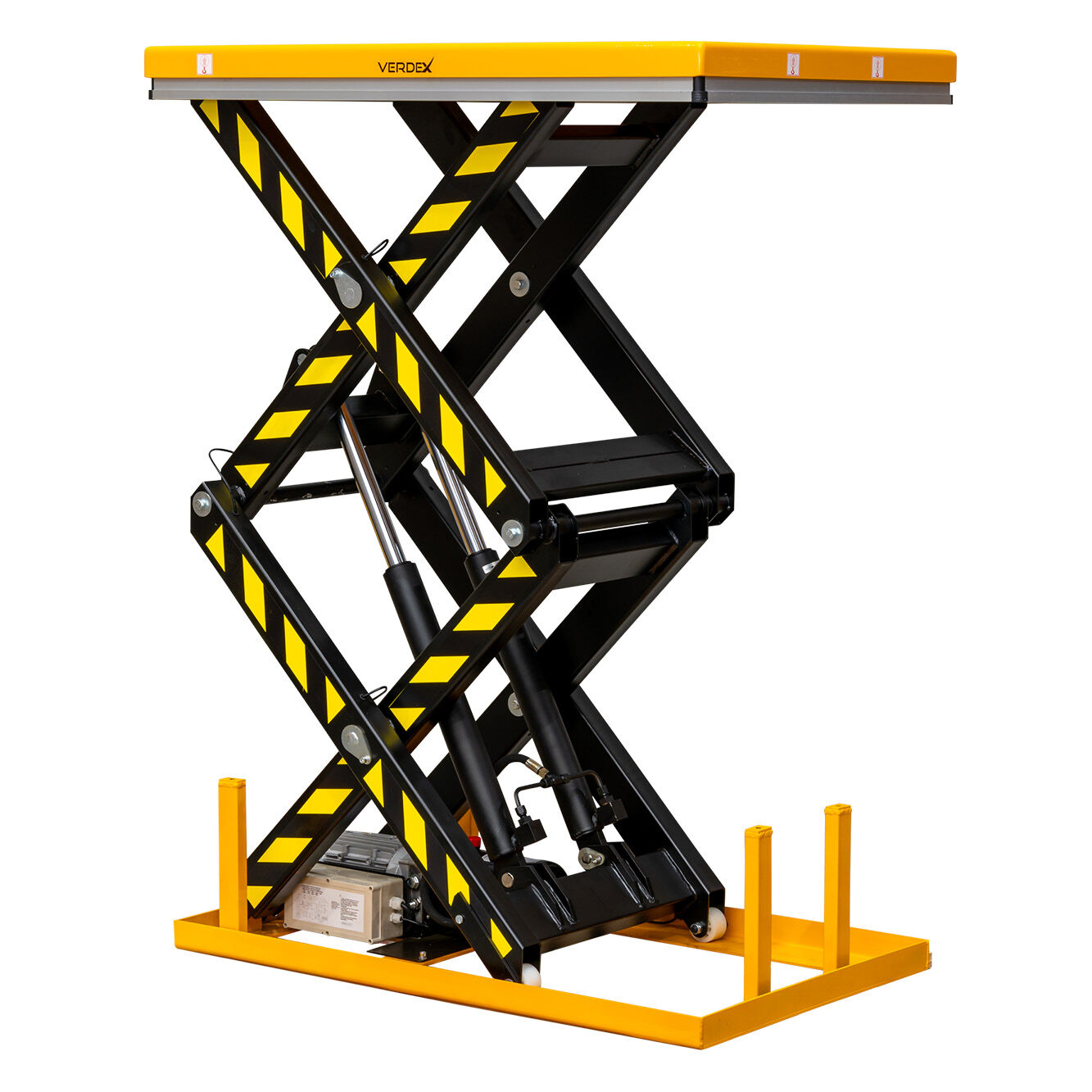

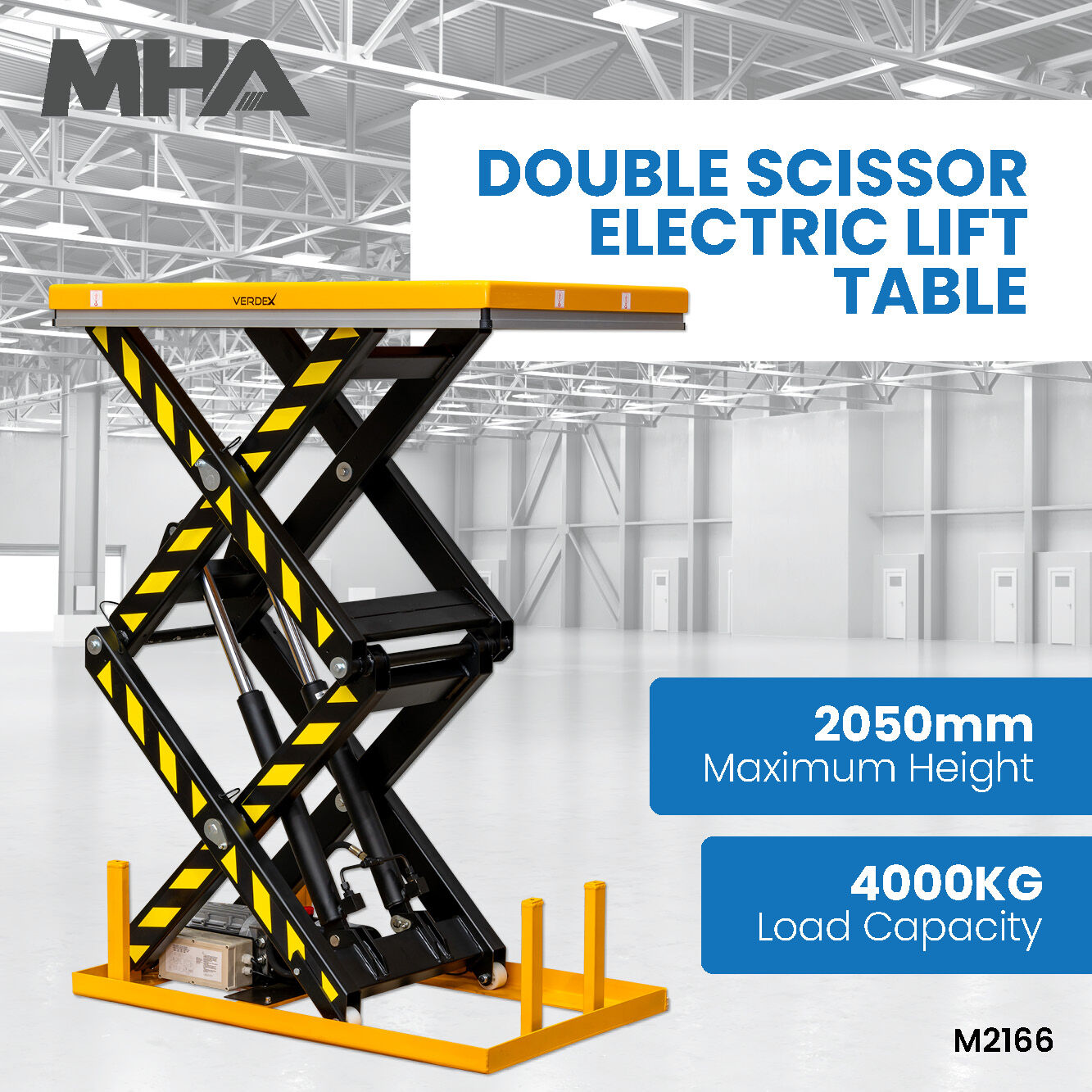

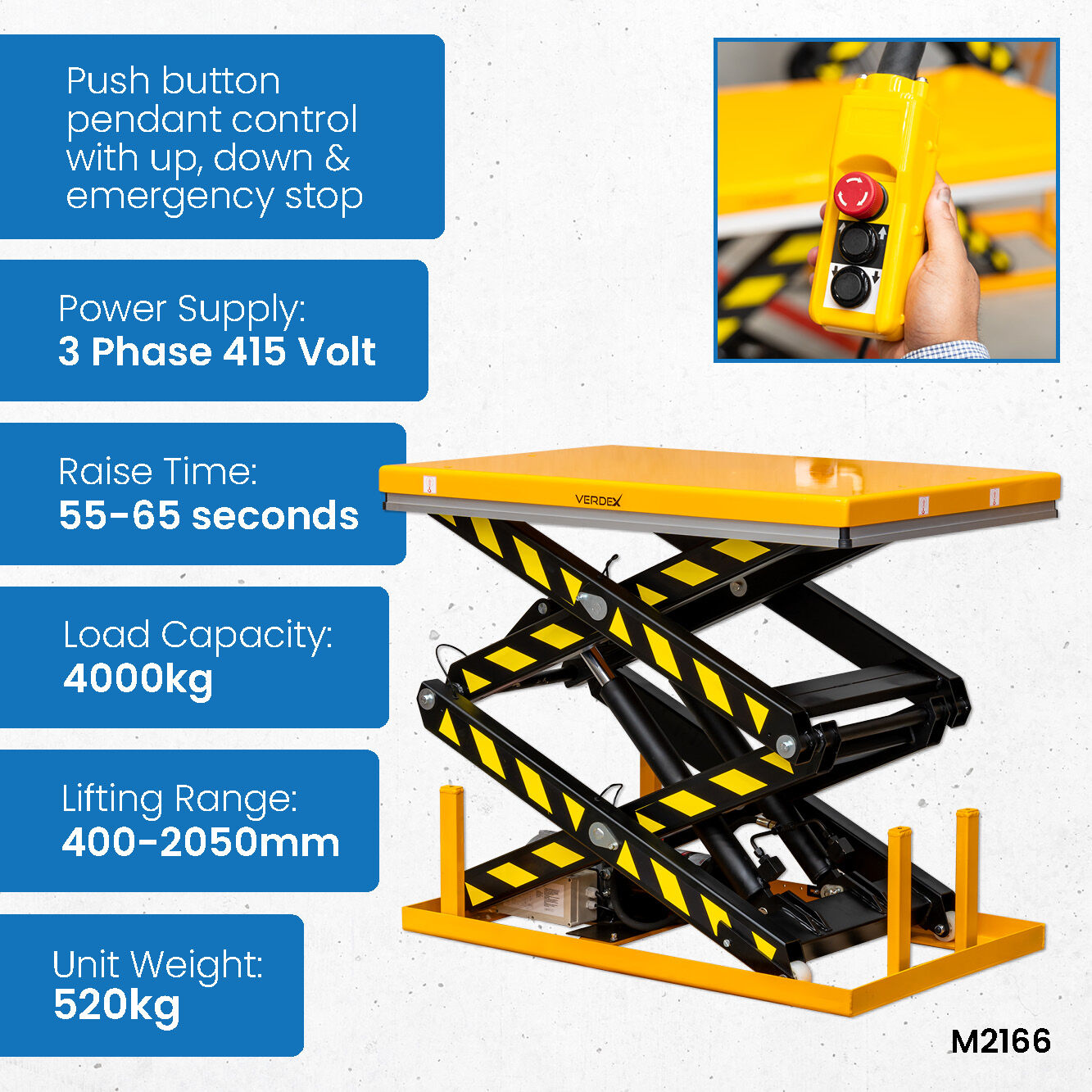

Double Scissor Electric Lift Table - 4000kg capacity

Double Scissor Electric Lift Table - 4000kg capacity

Product Code: M2166

  • Powder coated steel
  • Colour: Yellow & Black
  • Heavy duty design and construction
  • High quality European power packs
  • Self lubricating bushings on pivot points
  • Removable lifting eyes to facilitate installation and maintenance
  • Upper platform lifted with aluminium safety bar preventing descent on contact with obstructions.
  • Low volt (24v) control box with up-down buttons.
  • Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
  • Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
  • Safety clearance between scissors to prevent trapping during operation.
  • Push button pendant control with up, down and emergency stop.
  • Capacity: 4000kg
  • Table Size: 1200x1720mm
  • Base Frame Size: 900x1600mm
  • Raise Time: 55-65 secs
  • Minimum Height: 400mm
  • Maximum Height: 2050mm
  • Power Supply: 3 Phase 415 Volt
  • Unit Weight: 520kg
 Double Scissor Electric Lift Table - 4000kg capacity M2166
View Details

$7,987.00

-
+
In StockIn Stock
In StockIn Stock

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST
Product Dimensions / Specifications

Lift tables can be applied in many work places to increase productivity and safety. Loads can be elevated or lowered to optimum heights at the push of a button.

Features
  • Heavy duty design and construction
  • High quality European power packs
  • Suitable for on floor applications or in floor pit applications
  • Self lubricating bushings on pivot points
  • Removable lifting eyes to facilitate installation and maintenance
  • Standard Safety Features
  • Upper platform lifted with aluminium safety bar preventing descent on contact with obstructions.
  • Low volt (24v) control box with up-down buttons.
  • Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
  • Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
  • Safety clearance between scissors to prevent trapping during operation.
  • Push button pendant control with up, down and emergency stop.
  • 240v or 3 phase options available

Code
Capacity
Table Size
Base Frame Size
Raise Time
Min Height
Max Height
Unit Weight
Power Supply
M2165 2000kg 850x1300mm 785x1220mm 35-45 secs 360mm 1780mm 295kg 3 Phase 415 Volt
M2166 4000kg 1200x1720mm 900x1600mm 55-65 secs 400mm 2050mm 520kg 3 Phase 415 Volt

Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

The Double Scissor Electric Lift Tables offer robust construction and advanced features to enhance productivity and safety in various workplaces. Here are the key features and specifications:

Features:

Heavy-Duty Design: Built with a heavy-duty construction to withstand demanding environments and support heavy loads effectively.
High-Quality Power Packs: Utilizes European power packs renowned for their reliability and performance, ensuring smooth and efficient operation.
Versatile Application: Suitable for both on-floor and in-floor pit installations, providing flexibility in usage.
Self-Lubricating Bushings: Equipped with self-lubricating bushings on pivot points, reducing friction and ensuring smooth operation while minimizing maintenance needs.
Removable Lifting Eyes: Facilitates installation and maintenance by providing easy access to lifting points.
Standard Safety Features:

Aluminium Safety Bar: The upper platform is equipped with an aluminium safety bar to prevent descent upon contact with obstructions, enhancing safety during operation.
Low-Voltage Control Box: Features a low-voltage (24v) control box with up-down buttons for convenient and safe operation.
Internal Power Pack: Equipped with a relief valve against overloading and a compensated flow valve for controlled lowering speed, ensuring safety and efficiency.
Heavy-Duty Cylinders: Utilizes heavy-duty cylinders with a drainage system and check valve to prevent the lift table from lowering in case of a hose burst, enhancing safety during operation.
Safety Clearance: Provides safety clearance between scissors to prevent trapping during operation.
Push Button Pendant Control: Includes a push-button pendant control with up, down, and emergency stop functions for easy and intuitive operation.
Power Supply Options: Available in 240v or 3-phase options to accommodate different power requirements.
Specifications: (Specific specifications such as lifting height, load capacity, and platform size may vary depending on the model)

  • Power Supply: 240v or 3-phase options available
  • Control: Low-voltage (24v) control box with up-down buttons
  • Safety Features: Aluminium safety bar, relief valve, compensated flow valve, heavy-duty cylinders, safety clearance
  • Push Button Pendant Control: Included with up, down, and emergency stop functions

Overall, the Double Scissor Electric Lift Tables offer a combination of durability, safety, and versatility, making them suitable for various applications where lifting heavy loads to optimum heights is required. View MHA's full range of Pallet Lifters here to find the best solution for you.
