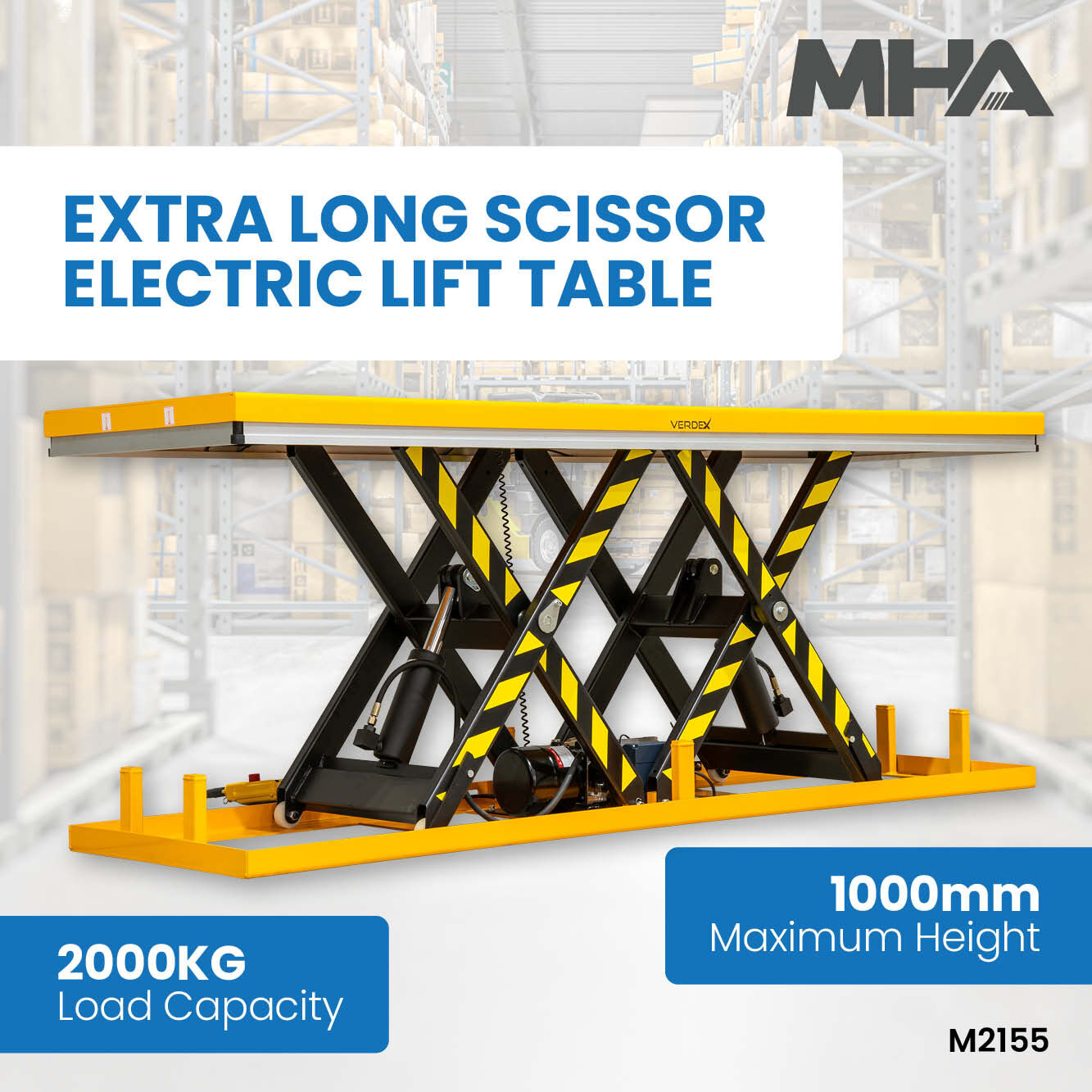

Extra Long Scissor Electric Lift Table
Click on image above to enlarge

Scissor Lift Trolleys and Tables

Extra Long Scissor Electric Lift Table


$7,120.00 Price excludes GST

SKU

M2155

Availability:

In StockIn Stock

Subtotal:

$7,120.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

Lift tables can be applied in many work places to increase productivity and safety. Loads can be elevated or lowered to optimum heights at the push of a button.

  • Heavy duty design and construction
  • High quality European power packs
  • Suitable for on floor applications or in floor pit applications
  • Self lubricating bushings on pivot points
  • Removable lifting eyes to facilitate installation and maintenance
  • 240V power supply (3 phase available as an option
  • Upper platform fitted with aluminium safety bar preventing descent on contact with obstructions
  • Low volt (24v) control box with up-down buttons.
  • Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed
  • Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst
  • Safety clearance between scissors to prevent trapping during operation.
  • Push button pendant control with up, down and emergency stop



Specifications:
  • Capacity: 2000kg
  • Table Size: 820x2500mm (WxL)
  • Base Frame Size: 640x2460mm (WxL)
  • Min Height: 205mm
  • Max Height:1000mm
  • Raise Time: 40-45 Seconds
  • Unit Weight: 265kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

The Extra Long Scissor Electric Lift Table offers robust construction and advanced features for enhanced productivity and safety. Here's a breakdown of its features and specifications:

Features:

Heavy-Duty Design: Built with a sturdy construction to withstand heavy loads and ensure long-term durability in industrial environments.
High-Quality Power Packs: Utilizes European power packs known for their reliability and efficiency, ensuring smooth operation.
Versatile Application: Suitable for both on-floor and in-floor pit applications, providing flexibility in installation and usage.
Self-Lubricating Bushings: Equipped with self-lubricating bushings on pivot points for smooth and maintenance-free operation.
Removable Lifting Eyes: Facilitates installation and maintenance by providing easy access to lifting points.
Power Supply Options: Compatible with 240V power supply, with an option for 3-phase supply, allowing flexibility in power requirements.
Safety Features: Includes an aluminium safety bar on the upper platform to prevent descent upon contact with obstructions, safety clearance between scissors, and a push-button pendant control with up, down, and emergency stop functions.
Low Voltage Control Box: Features a low-voltage (24v) control box with up-down buttons for convenient and safe operation.
Internal Power Pack: Internal power pack equipped with a relief valve against overloading and a compensated flow valve for controlled lowering speed, ensuring safety and efficiency.
Heavy-Duty Cylinders: Utilizes heavy-duty cylinders with a drainage system and check valve to prevent the lift table from lowering in case of a hose burst, enhancing safety during operation.
Specifications:

  • Capacity: 2000kg, providing ample lifting capacity for various heavy loads.
  • Table Size: 820x2500mm (Width x Length), offering an extended platform for accommodating large and bulky items.
  • Base Frame Size: 640x2460mm (Width x Length), ensuring stability and support for the entire lift table structure.
  • Height Range: Adjustable from 205mm to 1000mm, allowing for flexible positioning of loads at different heights.
  • Raise Time: 40-45 Seconds, providing efficient lifting performance.
  • Unit Weight: 265kg, ensuring a stable and durable lift table structure.

Overall, the Extra Long Scissor Electric Lift Table combines heavy-duty construction, advanced safety features, and versatile functionality to meet the demands of various industrial applications, enhancing productivity and safety in the workplace. For the best Scissor Lidr Trolley/Table suited to you, click here to view them all.
