Low Profile Electric Pallet Lift Tables
Low Profile Electric Pallet Lift Tables Low Profile Electric Pallet Lift Tables Low Profile Electric Pallet Lift Tables Low Profile Electric Pallet Lift Tables Low Profile Electric Pallet Lift Tables Low Profile Electric Pallet Lift Tables Low Profile Electric Pallet Lift Tables Low Profile Electric Pallet Lift Tables Low Profile Electric Pallet Lift Tables
Click on image above to enlarge

Scissor Lift Trolleys and Tables

Low Profile Electric Pallet Lift Tables


View Pricing & Order
  • Many applications require the regular loading and unloading of palletised goods. Repetitive lifting and stretching can be time consuming and hazardous. Using pallet lift tables elevates pallets to the optimum lift height reducing the risk of repetitive strain injury and increasing productivity.
  • Powder coated finish
  • Low clearance - only 85mm
  • Supplied with entry ramp to allow pallet truck entry
  • Can be supplied with optional rotator ring/turntable if required
  • Tables are specially made for handling pallets, no need for a pit or load ramps
  • Upper platform fitted with safety perimeter to prevent descent on contact with obstructions
  • 24v control box with UP and DOWN buttons and emergency stop
  • External power pack equipped with a relief valve against overloading and a compensating flow valve for controlling lowering speed
  • Power Supply: 240v (3 phase 415v availabe if required)
  • Hose burst safety valve to stop the lift table lowering in case of hose breakage
  • Removable lifting bolts to facilitate handling and installation of the lift table
  • Oil-less bushings on pivot points



To purchase the optional Rotator Ring Turntable, click here

Download PDF Download PDF Brochure Ask a QuestionAsk a Question

Product Description

  • Many applications require the regular loading and unloading of palletised goods. Repetitive lifting and stretching can be time consuming and hazardous. Using pallet lift tables elevates pallets to the optimum lift height reducing the risk of repetitive strain injury and increasing productivity.
  • Powder coated finish
  • Low clearance - only 85mm
  • Supplied with entry ramp to allow pallet truck entry
  • Can be supplied with optional rotator ring/turntable if required
  • Tables are specially made for handling pallets, no need for a pit or load ramps
  • Upper platform fitted with safety perimeter to prevent descent on contact with obstructions
  • 24v control box with UP and DOWN buttons and emergency stop
  • External power pack equipped with a relief valve against overloading and a compensating flow valve for controlling lowering speed
  • Power Supply: 240v (3 phase 415v availabe if required)
  • Hose burst safety valve to stop the lift table lowering in case of hose breakage
  • Removable lifting bolts to facilitate handling and installation of the lift table
  • Oil-less bushings on pivot points



To purchase the optional Rotator Ring Turntable, click here

View More Specifications

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image Description Code Price Each Order Quantity
Availability

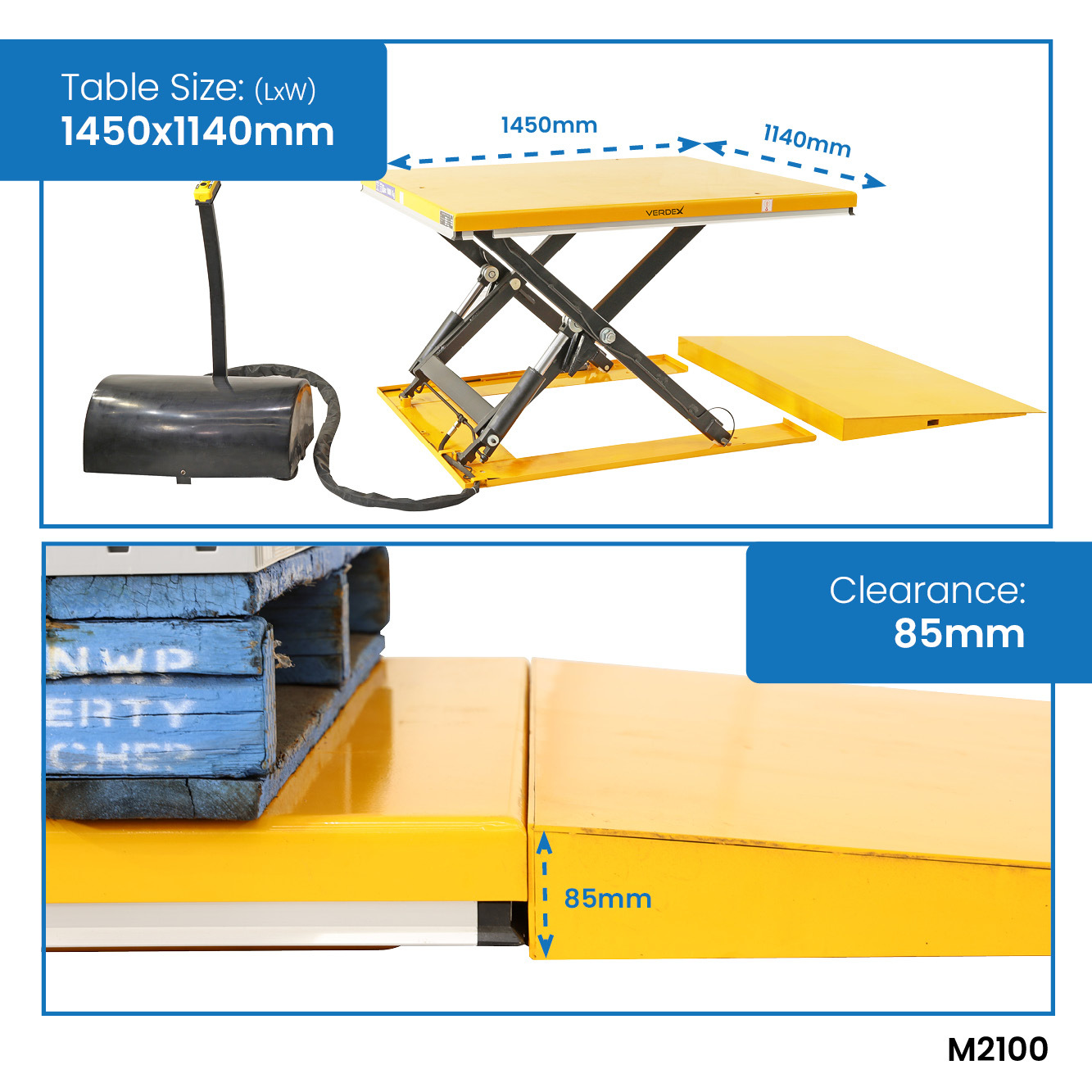

Low Profile Lift Table (including ramp) 1000kg

Low Profile Lift Table (including ramp) 1000kg

Product Code: M2100

  • Powder coated yellow finish
  • Low clearance - only 85mm
  • Power Supply: 240v (3 phase 415v availabe if required)
  • Load Capacity: 1000kg
  • Platform Size (LxW): 1450x1140mm
  • Lifting Range: 85-860mm
  • Lift Time: 20 seconds
  • Unit Weight: 357kg
 Low Profile Lift Table (including ramp) 1000kg M2100
View Details

$4,890.00

-
+
In StockIn Stock
In StockIn Stock
Low Profile Lift Table (including ramp) 2000kg

Low Profile Lift Table (including ramp) 2000kg

Product Code: M2101

  • Powder coated yellow finish
  • Low clearance - only 85mm
  • Power Supply: 240v (3 phase 415v availabe if required)
  • Load Capacity: 2000kg
  • Platform Size (LxW): 1600x1200mm
  • Lifting Range: 105-870mm
  • Lift Time: 20 seconds
  • Unit Weight: 419kg
 Low Profile Lift Table (including ramp) 2000kg M2101
View Details

$6,654.00

-
+
In StockIn Stock
In StockIn Stock

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST
Product Dimensions / Specifications
  • Many applications require the regular loading and unloading of palletised goods. Repetitive lifting and stretching can be time consuming and hazardous. Using pallet lift tables elevates pallets to the optimum lift height reducing the risk of repetitive strain injury and increasing productivity.
  • Powder coated finish
  • Low clearance - only 85mm
  • Supplied with entry ramp to allow pallet truck entry
  • Can be supplied with optional rotator ring/turntable if required
  • Tables are specially made for handling pallets, no need for a pit or load ramps
  • Upper platform fitted with safety perimeter to prevent descent on contact with obstructions
  • 24v control box with UP and DOWN buttons and emergency stop
  • External power pack equipped with a relief valve against overloading and a compensating flow valve for controlling lowering speed
  • Power Supply: 240v (3 phase 415v availabe if required)
  • Hose burst safety valve to stop the lift table lowering in case of hose breakage
  • Removable lifting bolts to facilitate handling and installation of the lift table
  • Oil-less bushings on pivot points



To purchase the optional Rotator Ring Turntable, click here



Code
Load Capacity
Platform Size (LxW)
Lifting Range
Lift Time
 Unit Weight
M2100 1000kg 1450x1140mm 85-860mm 20secs 357kg
M2101 2000kg 1600x1200mm 105-870mm 20secs 419kg

Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

The Low Profile Electric Pallet Lift Tables are designed to streamline the loading and unloading of palletized goods in various applications while prioritizing safety and efficiency. Here are the key features of these lift tables:

Low Clearance: With a clearance of only 85mm, these lift tables provide a low-profile solution for handling pallets, allowing for easy access and maneuverability in confined spaces.

Entry Ramp: Supplied with an entry ramp, the lift tables enable pallet trucks to enter smoothly, facilitating efficient loading and unloading operations.

Optional Rotator Ring/Turntable: These lift tables can be supplied with an optional rotator ring or turntable if required, enhancing versatility and accommodating specific handling needs.

No Need for Pit or Load Ramps: Specifically designed for handling pallets, these tables eliminate the need for a pit or load ramps, simplifying installation and operation.

Safety Perimeter: The upper platform of the lift tables is equipped with a safety perimeter feature that prevents descent upon contact with obstructions, ensuring operator safety and preventing accidents.

Control Box: The lift tables are equipped with a 24v control box featuring UP and DOWN buttons and an emergency stop function for convenient and safe operation.

External Power Pack: The external power pack is equipped with a relief valve to prevent overloading and a compensating flow valve for controlling lowering speed, ensuring precise and reliable performance.

Power Supply: These tables operate on a standard 240v power supply, with the option for 3-phase 415v if required, providing flexibility to suit various operational setups.

Hose Burst Safety Valve: To enhance safety, the lift tables are equipped with a hose burst safety valve that prevents the table from lowering in the event of hose breakage, minimizing the risk of accidents.

Removable Lifting Bolts: The lift tables feature removable lifting bolts, facilitating handling and installation, and ensuring ease of maintenance.

Oil-less Bushings: Pivot points on the lift tables are fitted with oil-less bushings, reducing friction and wear, and minimizing maintenance requirements.

Overall, the Low Profile Electric Pallet Lift Tables offer a reliable and efficient solution for pallet handling tasks, incorporating safety features, ergonomic design, and user-friendly controls to optimize productivity and minimize the risk of workplace injuries. To view all of MHA's Scissor Lift Trolleys/Tables range, click here.
